UVC Light and Cleanbox Engineering
Cleanbox patented UVC LED engineering kills 99.999% of viruses, bacteria, fungus, and germs on any device surface by exposing them to proprietary UVC LED light. Cleanbox is the only product in the world that can consistently achieve hospital-grade decontamination on frequently shared devices in just 60-seconds. Cleanbox proprietary process considers the math of distance, intensity and length of time to achieve consistent results.
Cleanbox eliminates contagions at a log 5 kill of 99.999% by exposing them to proprietary UVC LED engineering that considers the math of distance, intensity and length of time.
UVC light intensity x time = total dosage of light
(distance to surface) squared
UVC Light Intensity is the intensity of the light when it leaves the bulb. It is usually measured as mW/cm2. Distance to the surface is critical because all light obeys the inverse square law. This means that the intensity of the light falls off very rapidly the further the material being disinfected is from the light source and the curve is dramatic. A little bit of distance has a very large impact on the effect.
Decontamination time is measured in seconds.
Total dosage is what matters. If you have a very weak light for a long period of time you can equal the dosage of a strong light for a short period of time. Of course, there are a lot of other variables to consider, like strong lights can degrade the materials they are disinfecting, and if the light is too weak pathogens might be able to replicate faster than you’re disabling them, but we’ve done that work and our devices do what they’re supposed to do. They kill pathogens in very short cleaning cycles with no damage to the items they are disinfecting.

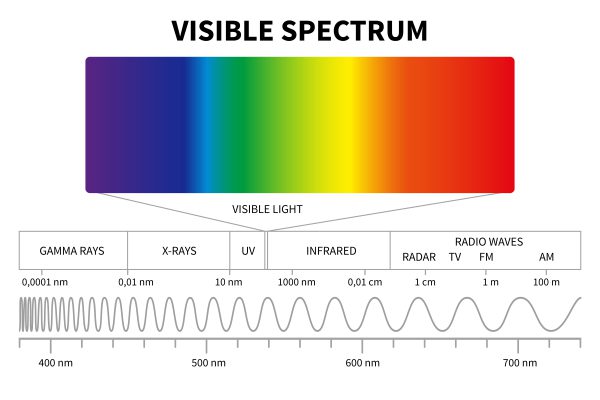

There are Three types of Ultraviolet Light – Only UVC Destroys Contagions
All light including UVC light, obeys the inverse-square law. The inverse square law dictates that a physical quantity is inversely proportional to the square of the distance from its source. This means that the further the light travels, the less intense that light becomes, and because of the inverse-squared relationship, that intensity drops quickly the further the distance from surface to light source.
For example, if light is of intensity “X” at a distance of 2”, then it is 1/4X at 4” and 1/16X at 8”. Importantly, even short distance variation can have a huge effect on how well that UVC light is doing its job. (11)
Combining calculations of distance with calculations of intensity and duration, and accounting for variables such as surface material and touch points on specific objects, Cleanbox delivers an accurate, effective and safe decontamination solution.
By calculating the exact exposure time and distance (between light source and object) necessary for complete decontamination, Cleanbox Technology has engineered highly effective surface decontamination.
Want to know more?
For a detailed explanation of the technical underpinnings of UVC light technology used by Cleanbox, please refer to our whitepaper, published in collaboration with Hoag Memorial Hospital.
